Vibration pickup : Piezoeletric ceramic accelerometer (shear-type)
Measurement range of acceletation : 0.1~199.9m/s⊃2; peak
Measurement range of acceleration : 0.1~199.9mm/s rms
Measurement range of displacement : 0.001~1.999mm p-p
Velocity and displacement range is limited by acceleration 199.9m/s⊃2;
Measurement accurace : +-5% +-2digits
Measurement frequency range of acceleration : 10Hz~1KHz (LO) 1KHz~15KHz(HI)
Measurement frequency range of velocity : 10Hz~1KHz (LO)
Measurement frequency range of displacement : 10Hz~1KHz (LO)
Displays update cycle : 1 second
LCD display : 3 1/2 digits display
Single output : AC output 2V peak (display full scale)
Load impedance 10K Ω or more earphones can be connected
Power supply : 9V Alkaline battery
Static current : ≤20 uA
Operating current : ≤25 mA
Battery life : 20 hours continuous use
Auto power-off : Turns off automatically in 60 seconds
LCD backlight : 7 seconds
Operating temperature range : 0~40°C
Operating humidity range : 30~90%RH
Low battery indication : 6.9V +-0.2V
Dimensions : 67x30x183mm
Weight : around 170g (Not Include Battery Delievry)
1. This product adopts piezoelectric effect of artificial polarized ceramic for design
2. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery
3. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc
Simple to use, the structure is compact, portable for carrying along with measurement.
Visually display measurement value and state.
Acceleration, velocity and displacement measurement.

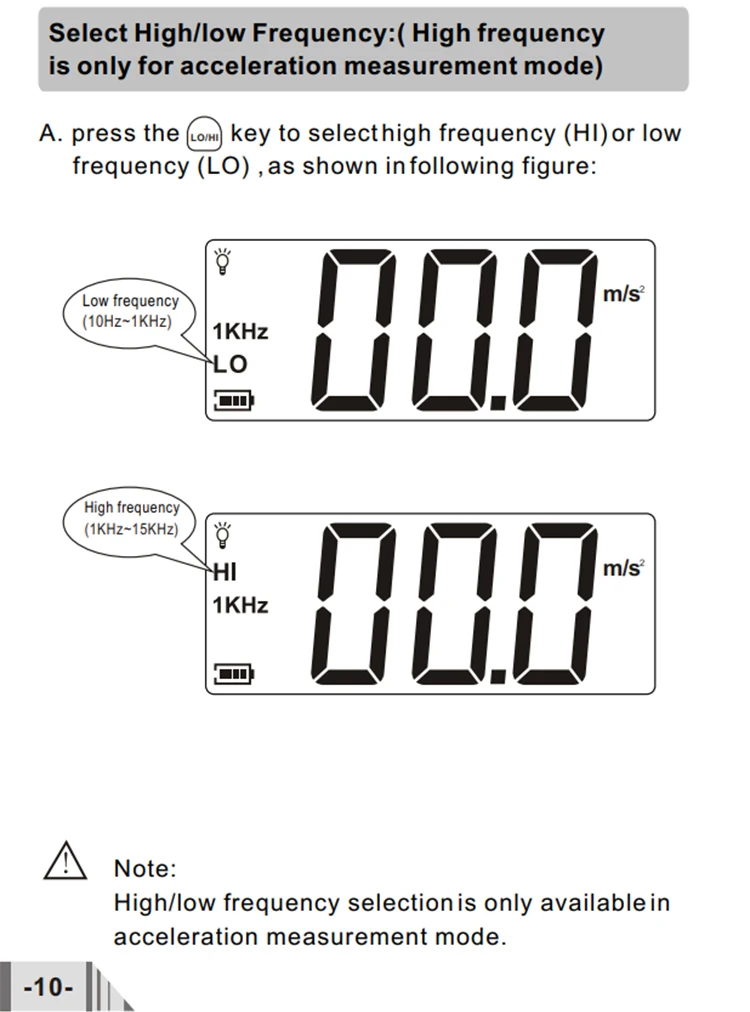

Different vibration frequency selection.

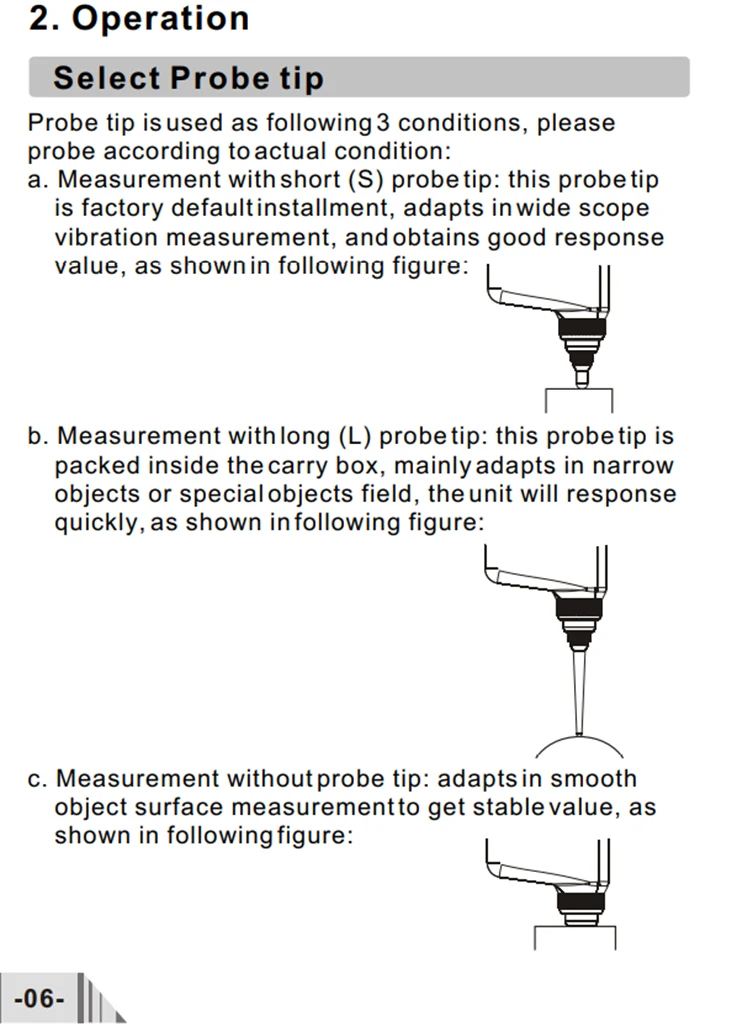

High sensitivity probe for accurate measurement Provides long and short probe head ,each one is suitable for different situation measurement.
Equipped with AC signal output interface.
Low power indication.
Integrated Vibration Meter Motor Probe Fault Vibration Tester Detector Vibrometer Seismometer High Precision Handheld Portable
